It is well known that deep neural networks (DNNs) produce poorly calibrated estimates of class-posterior probabilities. We hypothesize that this is due to the limited calibration supervision provided by the cross-entropy loss, which places all emphasis on the probability of the true class and mostly ignores the remaining. We consider how each example can supervise all classes and show that the calibration of a C-way classification problem is equivalent to the calibration of C(C-1)/2 pairwise binary classification problems that can be derived from it. This suggests the hypothesis that DNN calibration can be improved by providing calibration supervision to all such binary problems. An implementation of this calibration by pairwise constraints (CPC) is then proposed, based on two types of binary calibration constraints. This is finally shown to be implementable with a very minimal increase in the complexity of cross-entropy training. Empirical evaluations of the proposed CPC method across multiple datasets and DNN architectures demonstrate state-of-the-art calibration performance.

Methodology

---

Efficiency of CPC supervision for calibration. Left: Under classic cross-entropy training, each training example only provides significant supervision to the posterior probability of its class label. Right: Under CPC, each training example provides significant supervision to the probabilities of all classes.

Results

---

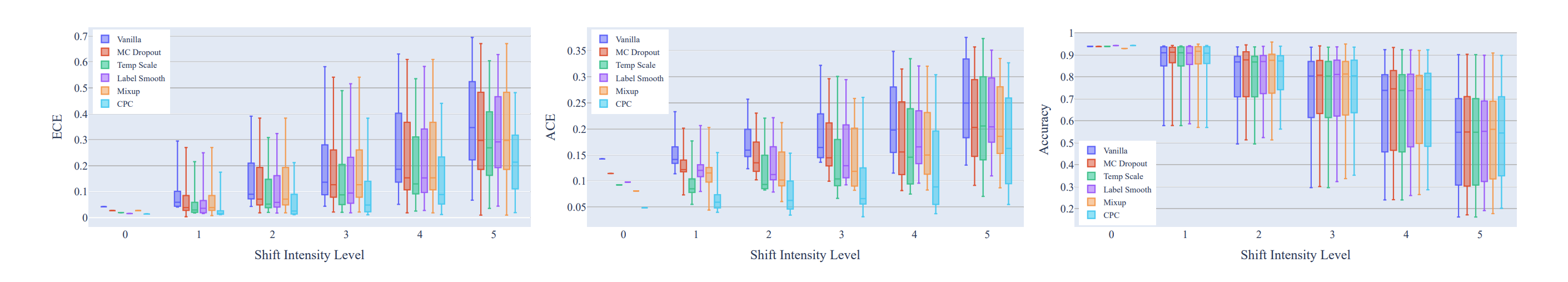

Calibration and classification performance of different methods on VGG-13 and CIFAR-10 under different levels of data shift.

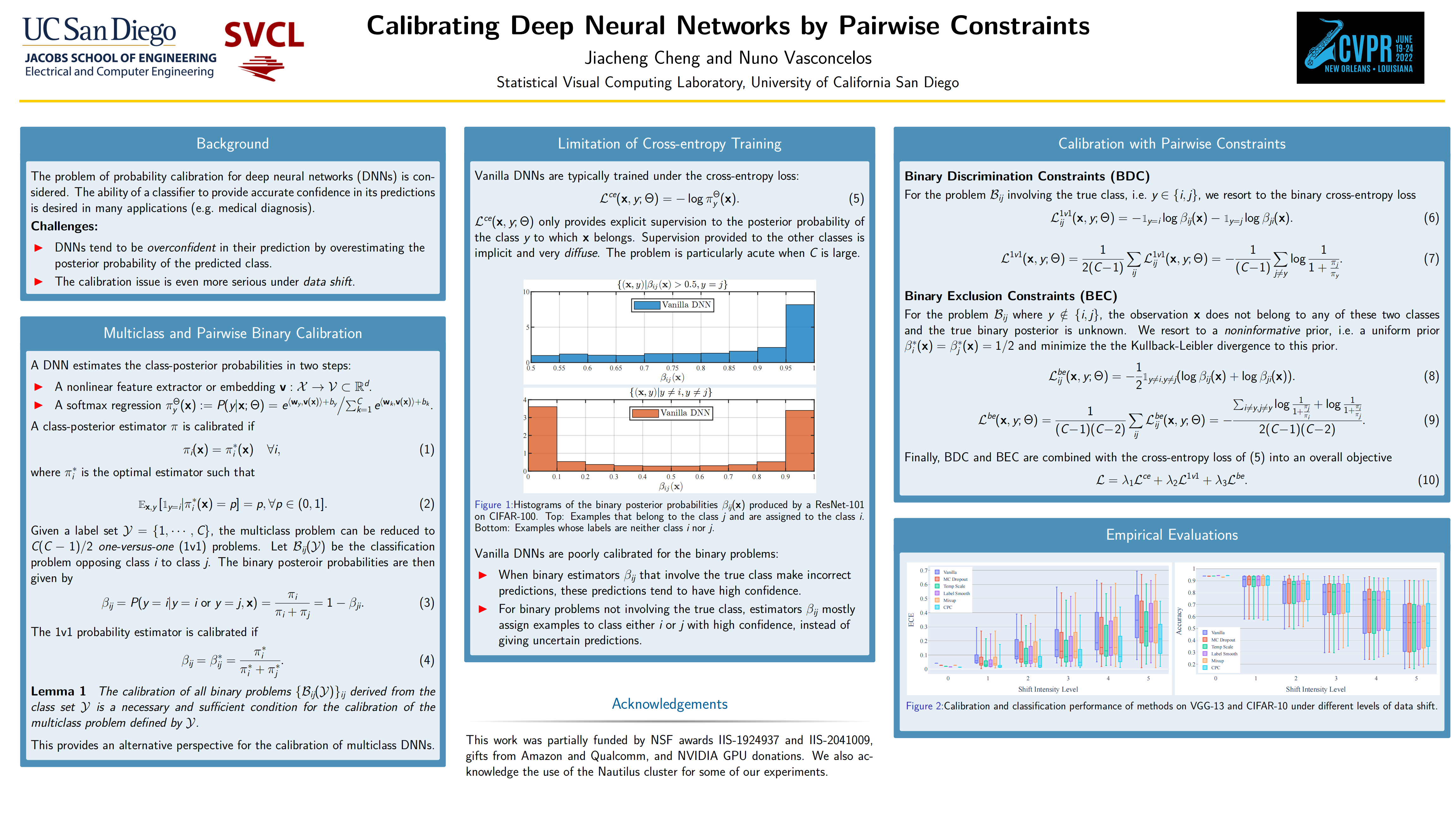

Poster

---

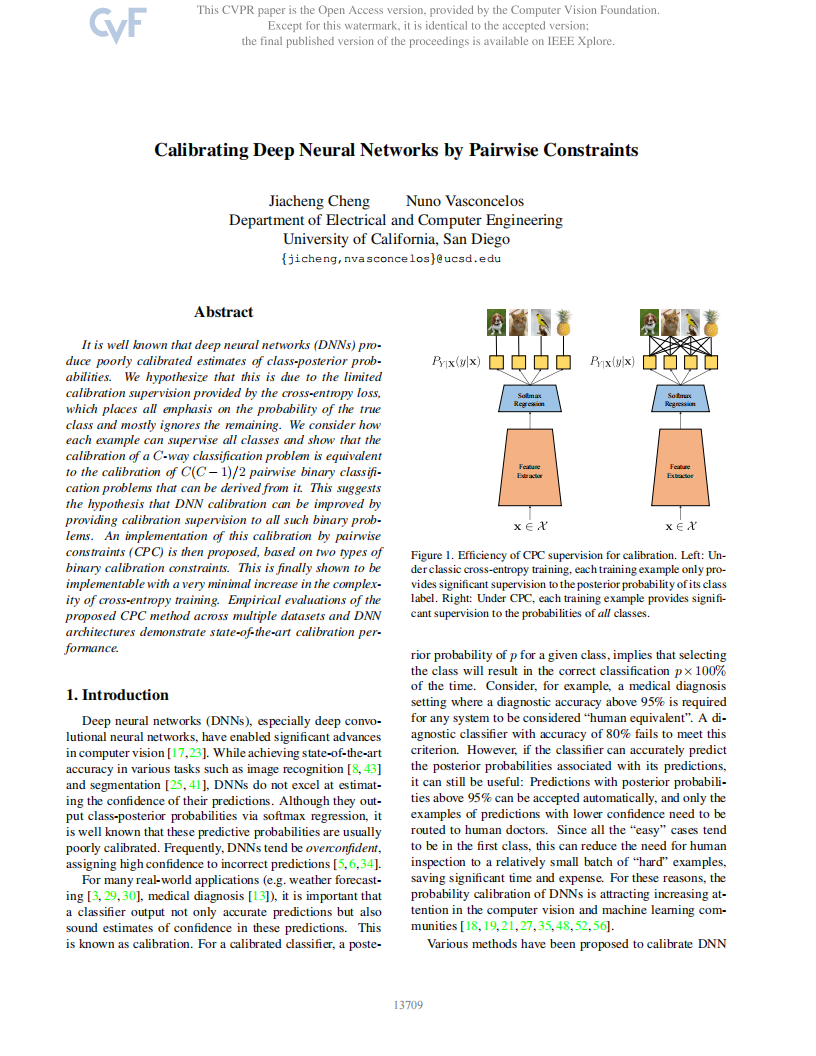

Paper

---

PDF

Supplement

Code

Bibtex

Acknowledgements

This work was partially funded by NSF awards IIS1924937 and IIS-2041009, a gift from Amazon, a gift from Qualcomm, and NVIDIA GPU donations. We also acknowledge and thank the use of the Nautilus platform for some of the experiments discussed above.
